Page | 7

Using an External Controller

 Push the remote wires from the external controller through the rubber plug on the bottom left side of the control

box.

 Connect the two remote wires to the two wires from the heater control with the grey wire nuts.

 For POOL/SPA Remote – Adjust both pool and spa temperature’s to your desired setting.

 For Remote Thermostat – Adjust pool temperature down to “OFF” and turn spa temperature up to 104° F.

 For 3 wire remote controls, use 2 wires connected to COM & HIGH at the external controller.

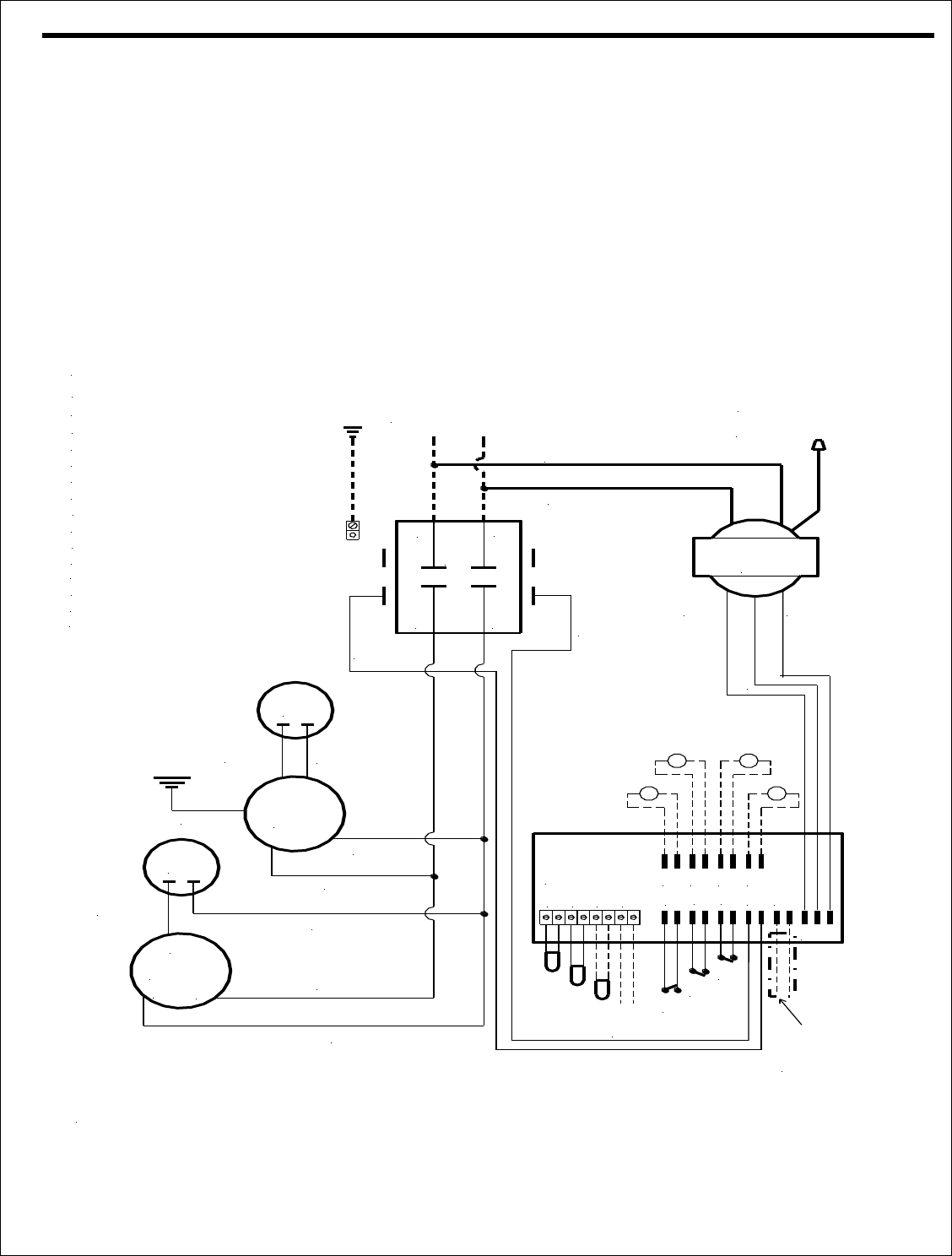

Wiring Diagram

12-0-12

240 V

Red

Black

Comp

Yellow

Black

White

Brown

Blue

Yellow

COMP

Black

HPS

LPS

FLO

Green

Red

Wires

Blue

Wires

White

Wires

Digital

Control

High Voltage

Field Connection

208-230/1/60

220-240/1/50

Black

Orange - 230V

Red Wire

Use for 208 V

Application

Legend

Comp...Compressor

CC...Compressor Capacitor

DS....Defrost Temp. Sensor

FC...Fan Capacitor

FM...Fan Motor

HPS...High Pressure Switch

LPS...Low Pressure Switch

WS....Water Temp. Sensor

M1...Main Contactor

RV...Reversing Valve (Optional)

T1...Transformer

FLO...Water Pressure Switch

Built Right Pool Heater

PUMP

Optional 24 Vac

Field Wiring to

Pump

Contactor

Brown

Black

12-0-12

WS DS AS P/S

Field Wiring for

Remote Switch or

T'Stat

SPR1 SPR2 REVR JAND

FR RV

SG...Solar or Gas Relay (Optional)

FR...Fan Motor Relay (Optional)

JV...Jandy Valve Relay (Optional)

White

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
